Laser Sources · L1-MP-Y1070
Pulsed ytterbium fibre laser
Air-cooled pulsed source to 100 W average, 100 ns pulses at 2 to 500 kHz, with burst control down to a single pulse.
Built to orderIndustrialDeeptech

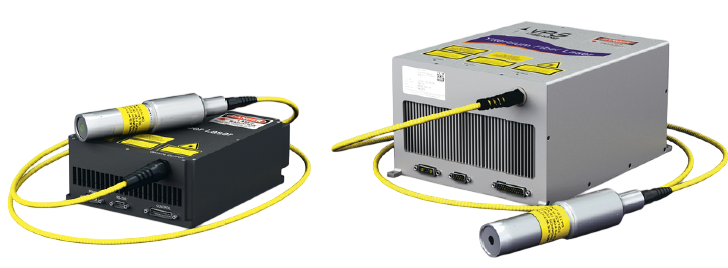

Download the datasheet (PDF)A compact air-cooled pulsed source delivered through a three-metre fibre with a collimator. The number of pulses in a burst can be reduced to single-pulse mode, which is what makes one source usable for micromachining, scribing and resistor trimming as well as for marking. A built-in optical isolator protects against back reflection, so highly reflective material can be processed, and a red pilot laser shows where the beam will land.
Specification
Optical
| Wavelength | 1.07µm |
|---|---|
| Nominal average power | 10, 20, 30, 50 or 100W |
| Pulse energy | 1mJ |
| Pulse duration | 100ns |
| Pulse repetition rate | 2 to 500kHz |
| Beam quality M² | 1.8 |
| Beam diameter | 6 to 9mm |
| Pilot laser | Red |
| Termination | Collimator |
Electrical
| Supply voltage | 24 V DC |
|---|---|
| Power consumption | 100 to 340, by ratingW |
Mechanical
| Feeding fibre length | 3, optionally 5m |
|---|---|
| Dimensions | 215 × 95 × 286, or 215 × 140 × 286mm |
| Cooling | Air |
Applications
Marking and engravingCleaningCoating removalScribingHeat treatmentTexturingAblationPrecision cuttingMilling
