Laser Sources · L1-RC-Y1070-SM
Single-mode fibre laser
Single-mode continuous-wave source to 2 kW with M² below 1.1, for precision cutting, SLM printing and welding reflective metals.
Built to orderIndustrialDeeptech

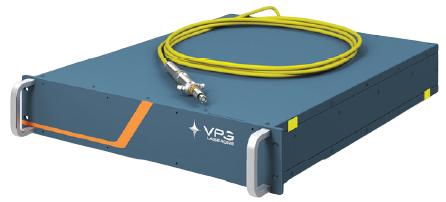

Download the datasheet (PDF)Single-mode output to 2 kW in a 2U rack. The small core of the delivery fibre is what gives the beam quality — M² below 1.1 — and that in turn is what allows kilowatt power to be focused into the narrowest achievable spot. It is the combination precision cutting and 3D SLM printing need, and back-reflection protection makes it safe on copper and brass.
Specification
Optical
| Central wavelength | 1070 ± 10nm |
|---|---|
| Operating mode | Continuous or modulated |
| Maximum average power | 500, 1000, 1500 or 2000W |
| Modulation frequency | Up to 50kHz |
| Power tuning range | 10 to 100% |
| Power stability | ± 1% |
| Beam quality M² | < 1.1 |
| Pilot laser | Yes |
| Output connector | QBH HLC-8 |
Electrical
| Supply voltage | 1-phase, 50/60 Hz, 200 to 240 V |
|---|
Mechanical
| Overall dimensions (W × D × H) | 2U rack, 448 × 550 × 88mm |
|---|---|
| Weight | 30 to 40kg |
| Cooling | Water |
Environment
| Operating temperature | 10 to 50°C |
|---|
Applications
Precision cuttingWelding of highly reflective metalsDrilling through holesLaser perforation3D SLM printing
