Laser Sources · L1-MC-Vxxx-SM

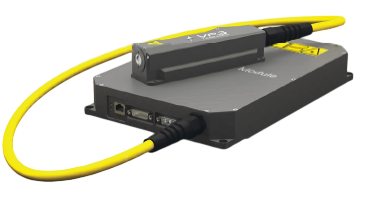

Visible laser module
Single-mode module built to any wavelength from 266 to 775 nm in 0.1 nm steps, air-cooled, with linewidth under 0.1 nm.
Built to orderDeeptechMedicalIndustrial
Download the datasheet (PDF)A Raman-shifted, frequency-converted fibre source covering the visible and ultraviolet from one platform. A fixed wavelength anywhere in the 266 to 775 nm range can be selected in 0.1 nm steps, several are available in a single-frequency configuration, and none of it needs liquid cooling — which is the practical difference from most laboratory sources at this power.
Specification
Optical
| Wavelength range | 266 to 775, selectable in 0.1 nm stepsnm |
|---|---|
| Operating mode | Continuous wave |
| Second harmonic power | 5 to 20, by wavelengthW |
| Third harmonic power | 0.2 to 1W |
| Fourth harmonic power | 30 to 100W |
| Beam quality M² | ≤ 1.2 |
| Polarisation | Linear 1:100, horizontal |
| Spectral line width | < 0.1nm |
Electrical
| DC supply | 24V |
|---|
Mechanical
| Module dimensions (H × W × D) | 43.5 × 217 × 325mm |
|---|---|
| Module weight | 5 to 5.5kg |
| Cooling | Air |
Control interface
| Control interfaces | Ethernet, RS-232 |
|---|
Environment
| Operating temperature | +10 to +40°C |
|---|
Applications
HolographyTi:Sapphire and DYE pumpingSpectroscopyDNA sequencing and cytometrySecurity systemsMicroelectronics and lithographyMedical and cosmetic equipment
