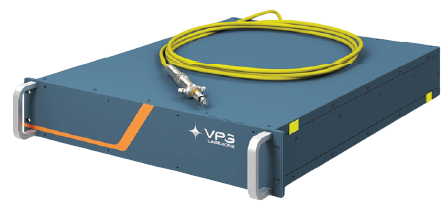

Laser Sources · L1-RUC-Y1070
Medium-power industrial fibre laser
Compact kilowatt-class continuous-wave source to 6 kW in a 2U rack, with a built-in dryer for high-humidity plants and a 36-month warranty.
Built to orderIndustrial
Download the datasheet (PDF)The most compact continuous-wave ytterbium source in its power class, in a 2U rack housing. A built-in dryer and a wide operating temperature range let it run in production environments that would normally need a conditioned room, and continuous self-diagnostics report the source's own state rather than leaving it to be inferred from the process.
Specification
Optical
| Central wavelength | 1070 ± 10nm |
|---|---|
| Operating mode | Continuous wave or modulated |
| Maximum average power | 1000, 1500, 2000 and up to 6000W |
| Modulation frequency | Up to 50kHz |
| Power tuning range | 10 to 100% |
| Power stability | ± 0.5% |
| Output fibre core diameter | 50; optionally 100, 200, 400, 600µm |
| BPP | 2; optionally 5, 10, 14, 22mm × mrad |
Electrical
| Supply voltage | 1-phase, 50/60 Hz, 200 to 240 V |
|---|---|
| Power consumption | 2500 to 5000W |
Mechanical
| Overall dimensions (W × D × H) | 448 × 550 × 88mm |
|---|---|
| Weight | 30 to 80kg |
| Cooling | Water |
Environment
| Operating temperature | 10 to 50°C |
|---|---|
| Ambient humidity | 10 to 90% |
Applications
2D and 3D metal cuttingSpot and butt weldingCladding and SLM printingPrecision processingHeat hardeningDrilling through and blind holes
