Laser Sources · L1-RC-V5xx-SM
High-power green laser

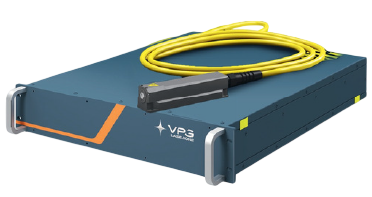

Rack-mounted continuous-wave green source to 50 W at 532 and 536 nm, water-cooled, for microelectronics and laser pumping.
Built to orderDeeptechIndustrial
Download the datasheet (PDF)The rack-mounted end of the green line: single-mode continuous wave to 50 W at 532 and 536 nm, built on an ytterbium fibre laser with frequency doubling in a 19-inch water-cooled enclosure. Power stability holds inside ± 1 % at the lower ratings, which is what pumping a Ti:Sapphire or DYE laser actually needs.
Specification
Optical
| Wavelengths | 532, 536nm |
|---|---|
| Operating mode | Continuous wave |
| Maximum output power | 8, 10, 20, 25, 30 or 50W |
| Beam quality M² | < 1.2 to < 1.5, by rating |
| Polarisation | Linear 1:100, horizontal |
| Output power stability | < ± 1 to < ± 2% |
| Spectral line width | < 0.5 to < 1.2nm |
Electrical
| AC supply | 220 V, 50/60 Hz |
|---|---|
| Power consumption | 1000W |
Mechanical
| Module dimensions (W × D × H) | 88 × 448 × 760mm |
|---|---|
| Module weight | 36kg |
| Cooling | Water-cooled |
Control interface
| Control interfaces | Ethernet, RS-232 |
|---|
Environment
| Operating temperature | +10 to +40°C |
|---|
Applications
Ti:Sapphire and DYE laser pumpingSecurity systemsScientific researchMicroelectronics
