Laser Sources · L1-MC-V5xx-SM

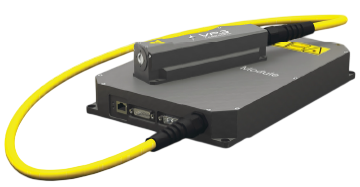

Green laser module
Compact air-cooled OEM module, 510 to 540 nm, single-mode continuous wave with optical noise below 0.3 % rms.
Built to orderDeeptechMedicalIndustrial
Download the datasheet (PDF)A green single-mode module for builders putting a source inside their own instrument: no water cooling, a 24 V supply and a 43.5 mm-high housing. Optical noise below 0.3 % rms over 20 MHz is what makes it usable as a pump for DYE and Ti:Sapphire lasers, and any wavelength in the 510 to 540 nm range can be built to order.
Specification
Optical
| Standard wavelengths | 510, 515, 532, 535nm |
|---|---|
| Operating mode | Continuous wave |
| Maximum output power | 1 to 10, by wavelengthW |
| Beam quality M² | ≤ 1.3 |
| Polarisation | Linear 1:100, horizontal |
| Power stability | ≤ ± 1% |
| Optical noise to 20 MHz | < 0.3% rms |
| Spectral line width | ~ 1nm |
Electrical
| DC supply | 24V |
|---|
Mechanical
| Module dimensions (H × W × D) | 43.5 × 217 × 325mm |
|---|---|
| Weight | 5 to 6kg |
| Cooling | Air |
Control interface
| Control interfaces | Ethernet, RS-232 |
|---|
Environment
| Operating temperature | +15 to +35°C |
|---|
Applications
Ti:Sapphire and DYE laser pumpingLaser shows and outdoor advertisingObject illuminationSecurity systemsScientific researchMedical and cosmetic equipment
