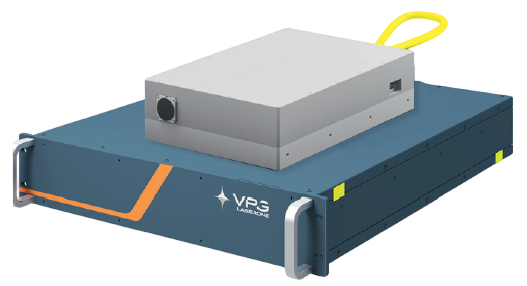

Laser Sources · L1-RC-V536-200-SM
Continuous-wave green laser
200 W and 300 W continuous-wave green source at 536 nm, absorbed up to ten times more strongly by copper than an infrared beam.
Built to orderIndustrialDeeptech
Download the datasheet (PDF)A high-power continuous-wave source in the green, where copper and gold absorb up to ten times more energy than they do at 1 µm. That difference is what makes selective laser melting and welding of copper alloys practical rather than marginal — cooling-system parts, antennas and electrically conductive components process faster and more stably than with an infrared source.
Specification
Optical
| Central wavelength | 536nm |
|---|---|
| Operating mode | Continuous wave, with modulation |
| Maximum average power | 200 or 300W |
| Power tunability | 10 to 100% |
| Power stability | ± 3% |
| Beam quality M² | < 1.5 |
| Beam ellipticity | < 5% |
Electrical
| Supply voltage | 200 to 240 VAC |
|---|---|
| Power consumption | 3000W |
Mechanical
| Dimensions (D × W × H) | 760 × 448 × 88mm |
|---|---|
| Module weight | 36kg |
| Optical head weight | < 15kg |
| Cooling | Water-cooled |
Environment
| Ambient humidity | 10 to 80% |
|---|
Applications
Selective laser melting of copperWelding of copper and copper alloysCooling-system componentsAntennas and conductive parts
