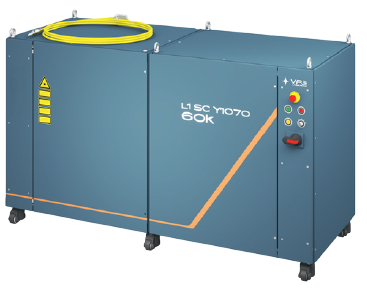

Laser Sources · L1-SC-Y1070-60k
High-power ytterbium fibre laser
Flagship multi-module source to 60 kW at 1070 nm, above 45 % wall-plug efficiency, with back-reflection protection for copper and aluminium.
Built to orderIndustrialDefence & Aerospace
Download the datasheet (PDF)The top of the line: a modular multi-kilowatt source in a sealed industrial enclosure with an integrated dehumidifier and reserve power, built for 24/7 processing. The modular construction is what makes a fast field repair possible, and the back-reflection protection system is what allows copper, aluminium and stainless to be processed safely at these powers.
Specification
Optical
| Wavelength | 1070 ± 5nm |
|---|---|
| Operating mode | Continuous wave or modulated |
| Maximum output power | 20, 30, 40 or 60kW |
| Modulation frequency | 0 to 5kHz |
| Output power adjustment | 10 to 100% |
| Power stability | ± 1% |
| Delivery fibre core diameter | 100, or 150 at 60 kWµm |
| Delivery fibre beam quality (BPP) | 4, or < 7 at 60 kWmm × mrad |
Electrical
| Power supply | 3-phase, 50/60 Hz, 400 to 480 V |
|---|---|
| Efficiency | > 45% |
Mechanical
| Weight | 500 to 1500, by ratingkg |
|---|---|
| Cooling | Water |
Control interface
| Control interfaces | Digital and analogue; EtherCut, ProfiNet, DeviceNet optional |
|---|
Applications
2D and 3D metal cuttingWeldingDrillingCladdingBrazingHeat treatmentProcessing of aluminium, copper and reflective metals
