Laser Sources · L1-RC-V355-3-SM
Continuous-wave UV laser
Single-mode continuous-wave ultraviolet source at 355, 311 and 266 nm, rack-mounted and water-cooled, for microelectronics and lithography.
Built to orderDeeptechIndustrial

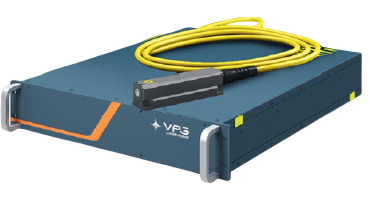

Download the datasheet (PDF)A continuous-wave ultraviolet line built on an ytterbium fibre laser with frequency conversion, housed in a 19-inch rack with water cooling. It delivers better than 3 W of single-mode, linearly polarised radiation in the ultraviolet, where most continuous-wave sources of comparable power are pulsed.
Specification
Optical
| Wavelengths | 355, 311, 266nm |
|---|---|
| Operating mode | Continuous wave |
| Maximum output power | 3 at 355 nm, 1 at 311 and 266 nmW |
| Beam quality M² | < 1.2 |
| Polarisation | Linear 1:100, horizontal |
| Output power stability | < ± 1% |
| Spectral line width | < 0.2nm |
| Beam diameter | 1; 2mm |
Electrical
| AC supply | 220 V, 50/60 Hz |
|---|
Mechanical
| Module dimensions (H × W × D) | 88 × 448 × 760mm |
|---|---|
| Module weight | 36kg |
| Cooling | Water-cooled |
Control interface
| Control interfaces | Ethernet, RS-232 |
|---|
Environment
| Operating temperature | +10 to +40°C |
|---|
Applications
MicroelectronicsScientific researchLithographyAdditive manufacturing of ceramics and photopolymers
