Internal thread hardening attachment
Optical head that hardens internal surfaces up to 150 mm deep through a hole as small as 70 mm, with a camera for setting the path.
Built to orderIndustrialDefence & Aerospace

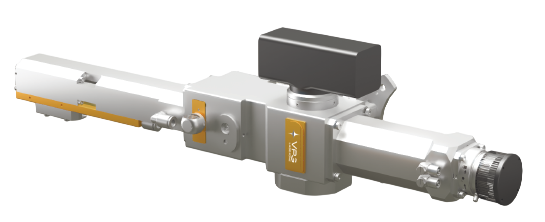

Download the datasheet (PDF)An optical head for laser hardening of internal surfaces — the areas that are hard to reach with anything else. Based on the FLW D30 head, it works to a depth of 150 mm through a minimum working hole of 70 mm, at up to 2 kW, with the beam entering at 30° to the normal. A camera is built in for setting the processing path, which matters when the surface being treated cannot be seen directly. It carries protection against both environmental contamination and reflected radiation.
Specification
Optical
| Maximum working power | 2000W |
|---|---|
| Laser spot diameter on the surface | Up to 5mm |
| Beam incidence angle to the normal | 30° |
Mechanical
| Working distance | At least 18mm |
|---|---|
| Minimum working hole diameter | 70mm |
| Maximum processing depth | Up to 150mm |
Control interface
| Path-setting camera | Included |
|---|---|
| Base head | FLW D30 |
Environment
| Cooling system | Yes |
|---|---|
| Shielding gas supply system | Yes |
| Powder feed system | No |
Before you specify this: Supplied with a two-year warranty that can be extended, plus commissioning support and training for service engineers and process specialists.
Applications
Laser processing of internal surfaces of partsSurface laser hardening of carbon steelsModification of metal surfaces
