Handheld Systems · L1-WELD
Handheld laser welding system
Handheld welding to 6 mm in steel and aluminium, up to four times faster than TIG, with beam oscillation to 5 mm and a cladding function on the Plus.
Built to orderIndustrial

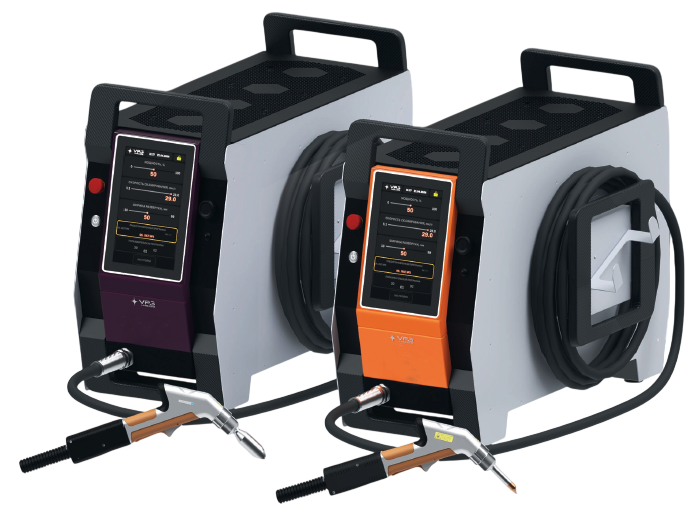

Download the datasheet (PDF)Handheld laser welding in two configurations. Both weld up to four times faster than TIG with almost no distortion and a far smaller heat-affected zone, and both carry a pre- and post-weld cleaning function. Dynamic beam oscillation increases penetration by up to 40 % without filler wire and up to 140 % with it. The Plus adds laser cladding — repairing worn shafts, gears, dies and moulds, and filling cavities and cracks in castings. The system can also be mounted on an industrial robot and driven over MODBUS TCP.
Specification
Optical
| Configurations | L1-WELD Pro and L1-WELD Plus |
|---|---|
| Stainless, low-carbon and galvanised steel | Up to 6mm |
| Al-Mg and Al-Mn alloys | Up to 6mm |
| Copper | Up to 2mm |
| Cleaning width | Up to 15mm |
| Beam scanning width | Up to 5mm |
| Filler-wire welding | Yes, single or dual feed |
Electrical
| Power consumption | < 6.5kW |
|---|
Control interface
| Preset modes | 27 |
|---|---|
| Robot integration | Compatible; external MODBUS TCP control |
Environment
| Warranty | 2 years |
|---|
Applications
Handheld welding of steel and aluminiumWelding of highly reflective metalsLaser cladding and part restorationDefect repair in castingsPre- and post-weld cleaningRobotic welding cells
