Laser cleaning system
Pulsed cleaning to 60 m² per hour at Sa 2.5, air-cooled, from a 220 V supply — around ten times cheaper to run than sandblasting.
Built to orderIndustrial

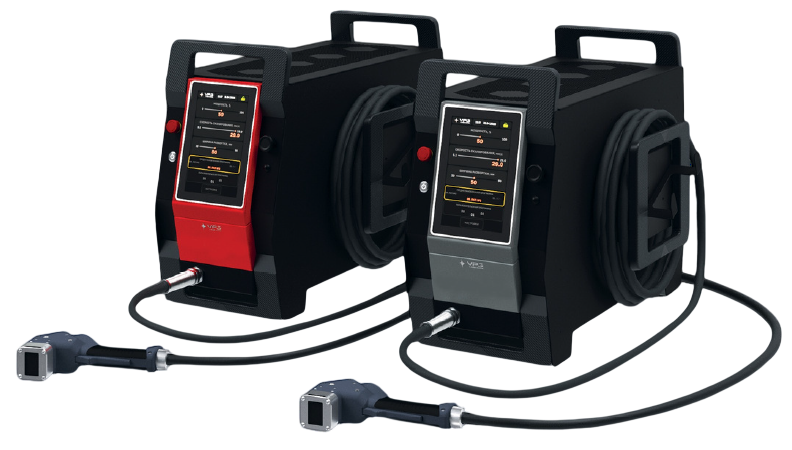

Download the datasheet (PDF)Pulsed laser cleaning in two configurations: V2, a six-channel head for delicate work that lifts contamination without touching the substrate, and X, a single-channel head with a 250 µm waist for productive removal of heavy rust, paint and powder coating. Cleaning reaches 60 m² per hour at Sa 2.5 to ISO 8501-1, there are no consumables beyond the protective windows, and the whole unit runs from an ordinary 220 V supply.
Specification
Optical
| Configurations | L1-CLEAN V2 and L1-CLEAN X |
|---|---|
| Laser operating mode | Pulsed |
| Laser output power, Pmax | 1000W |
| Total average output power | 900 to 1200, by configurationW |
| Output beam waist diameter | 60 to 70 (V2), 250 (X)µm |
| Optical channels | 6 (V2), 1 (X) |
| Pulse duration | 150 (V2), 100 to 250 (X)ns |
| Pulse energy | 1.5 per channel (V2), 7 (X)mJ |
| Pulse repetition rate | 25 to 125 per channel (V2), 130 to 140 (X)kHz |
| Cleaning rate | Up to 60 at Sa 2.5 to ISO 8501-1m²/h |
Electrical
| Supply voltage | 210 to 240V |
|---|---|
| Maximum power consumption | 3500W |
Mechanical
| Cable length | 10 or 15m |
|---|---|
| Control unit dimensions | 618 × 318 × 501mm |
| Control unit weight | 60kg |
| Cooling method | Air |
Environment
| Operating temperature | +10 to +35°C |
|---|
Applications
Rust and mill-scale removalPaint and coating removalMould and die cleaningOxide removal from aluminiumRemoval of temper colours from stainlessPre- and post-weld surface preparation
