Hydrolaser cutting complex

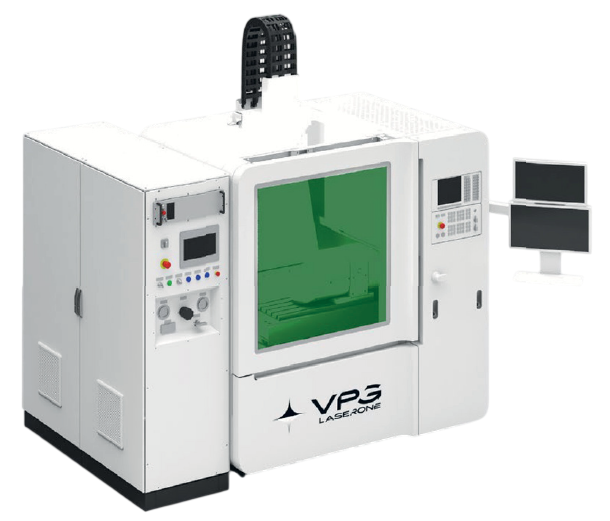

Five-axis CNC hydrolaser complex: burr-free cutting with no heat-affected zone, no focus adjustment, and micro-holes in ceramics, diamond and composites.
Built to orderDeeptechMedicalDefence & Aerospace
Download the datasheet (PDF)A universal five-axis CNC hydrolaser complex, where the beam is guided in a water jet. That is what removes the heat-affected zone and the need to adjust focus during processing: the cutting walls stay parallel and the surface stays burr-free through the full depth. The machine bed is synthetic diabase rather than cast iron, for better vibration damping in a compact frame.
Specification
Optical
| QCW laser | 1070 nm, 450 W average, 10 µs pulses |
|---|---|
| Green laser | 532 nm, up to 30 W, pulses to 100 ns |
Mechanical
| Working area (H / Ø) | 250 × 160mm |
|---|---|
| Maximum travel (X / Y / Z) | 500 × 350 × 400mm |
| Positioning repeatability | < 5µm |
| Circular trajectory deviation | < 10µm |
| A and C axis positioning accuracy | ± 25″ |
| Maximum speed (XY and Z) | 420mm/s |
| Maximum speed (A axis) | 200rpm |
| Maximum speed (C axis) | 500rpm |
| Water supply maximum pressure | 500bar |
| Nozzle diameter | 40 to 100µm |
| Machine dimensions (L × W × H) | 1855 × 1250 × 1950mm |
| Machine weight | 2000kg |
Control interface
| CNC control | HNC 848, 5-axis |
|---|
Applications
Micro-drilling of turbine cooling holesCutting of ceramic matrix compositesCutting tool manufacture in PCD and PCBNMicromachining of miniature partsMicro-grooves in tyre mouldsNiTi stent cuttingSemiconductor wafer scribing
